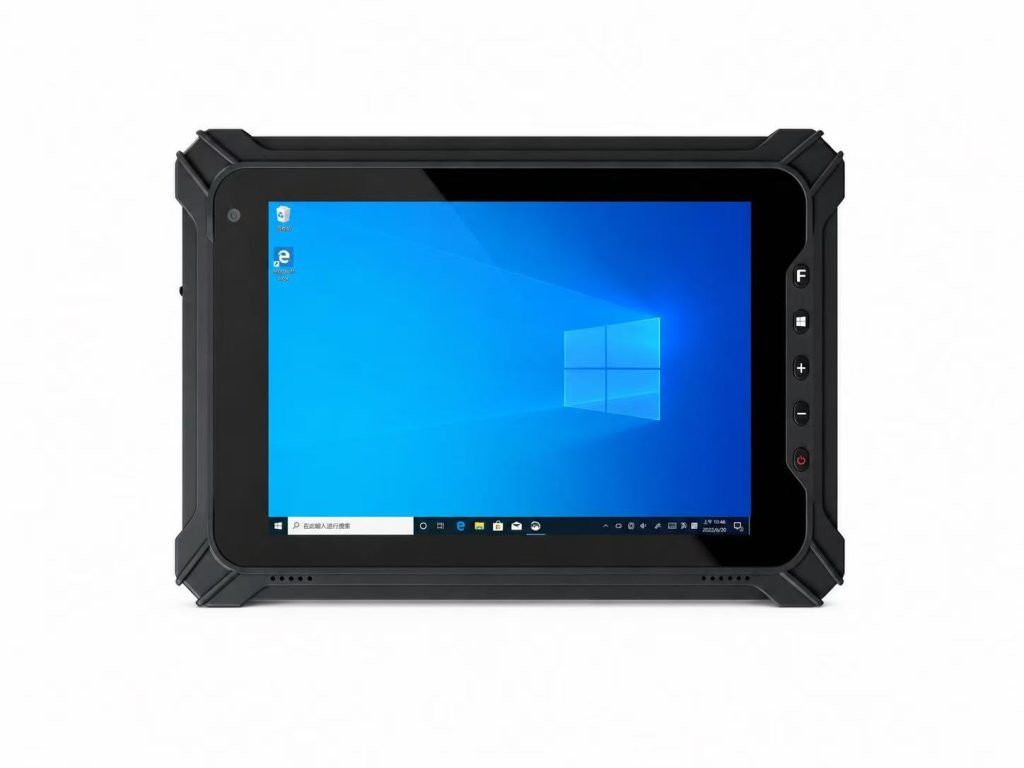

8 Inch Industrial Rugged Tablet IR-80N
Compact Windows Rugged Tablet for Warehouse, Logistics and Field Operations
Built for industrial mobility, the IR-80N combines Windows 11, Intel N5100 processing, IP65 protection and optional 4G LTE and barcode scanning in a compact 8-inch form factor.
8 Inch Industrial Rugged Tablet IR-80N
The IR-80N is a high-performance 8-inch industrial rugged tablet designed for demanding industrial environments. Equipped with an IP65-rated waterproof and dustproof enclosure, the device is built to withstand harsh working conditions including warehouses, logistics centers, manufacturing facilities, and outdoor field operations.
Featuring a sunlight-readable 700-nit display, reliable wireless connectivity, and optional GPS, NFC, and barcode scanning functions, the IR-80N helps businesses improve productivity and operational efficiency. The rugged housing meets MIL-STD-810H standards and survives drops up to 1.2 meters, ensuring long-term reliability in mission-critical applications.
INNORUGGED also provides OEM and ODM customization services for global distributors, system integrators, and industrial solution providers.
IR-80N: Compact 8 Inch Windows Rugged Tablet for Industrial Mobility
The IR-80N is an 8-inch industrial rugged tablet designed for warehouse operations, logistics management, manufacturing and outdoor field service. Powered by an Intel N5100 processor and Windows 11, it provides a compact mobile computing platform for industrial software, digital work orders and on-site data collection.
Its IP65-rated enclosure, 1.2-meter drop-resistant design and operating temperature range of -20°C to 60°C make it suitable for demanding working environments. The compact form factor helps mobile workers carry the device between workstations, vehicles and field locations.
With optional 4G LTE, barcode scanning and NFC capabilities, the IR-80N can be configured for inventory management, asset tracking, inspection and mobile enterprise workflows.
INNORUGGED supports B2B customers with configuration consultation and project-based OEM/ODM options.
Key Features of the IR-80N Rugged Tablet
IP65 Rugged Protection
Designed to resist dust and water jets in demanding industrial working environments.
Compact 8-Inch Display
Available with a 1200 × 1920 FHD display at 550 nits or an optional 800 × 1280 HD display at 700 nits.
Windows-Based Industrial Computing
Powered by an Intel N5100 processor with Windows 11, 8GB RAM and 128GB eMMC storage.
Flexible Wireless Connectivity
Wi-Fi 5, Bluetooth 5.0 and optional 4G LTE support mobile data access and communication.
Optional Barcode Scanning and NFC
Support inventory tracking, asset identification and industrial data collection with optional modules.
Industrial Interfaces and Docking
USB-A, USB-C, Mini HDMI and a 12-pin Pogo Pin interface provide flexible connections for compatible accessories and docking solutions.
Durability
MIL-STD-810H certified
IP65 certified
1.2m drop resistant
IP65 certified
1.2m drop resistant
Operating System
Windows 11 Home
Optional Windows 11 Pro / IoT
Optional Windows 11 Pro / IoT
Processor
Intel N5100
Up to 2.8GHz, 4 cores, 4 threads
Up to 2.8GHz, 4 cores, 4 threads
Memory
8GB LPDDR4x on board
Storage
128GB eMMC
Display
8.0” FHD 1200×1920, 550 nits
Optional 8.0” HD 800×1280, 700 nits
10-point capacitive touch screen
Optional 8.0” HD 800×1280, 700 nits
10-point capacitive touch screen
Network
Wi-Fi 5 802.11ac
Bluetooth 5.0
Optional 4G LTE
GPS module
Bluetooth 5.0
Optional 4G LTE
GPS module
I/O Interface
USB 3.0 Type-A ×1
USB 3.1 Type-C ×1
3.5mm audio jack ×1
HDMI 2.0a mini ×1
12-pin Pogo Pin ×1
USB 3.1 Type-C ×1
3.5mm audio jack ×1
HDMI 2.0a mini ×1
12-pin Pogo Pin ×1
Battery
Li-ion battery, 7.6V, 5000mAh
AC adapter 100–240V, 33W
AC adapter 100–240V, 33W
Environment
Operating temperature: -20°C to 60°C
Storage temperature: -30°C to 70°C
Humidity: 95% non-condensing
Storage temperature: -30°C to 70°C
Humidity: 95% non-condensing
Dimension
236.7 × 155.7 × 20 mm
Weight
910g
Application Scenarios
Built for demanding industrial environments
Warehouse Management
Real-time inventory tracking, barcode scanning and efficient warehouse operations.
Logistics Management
Reliable data collection for delivery, dispatching and transportation workflows.
Vehicle Mount
Designed for in-vehicle operation, route management and mobile computing tasks.
Outdoor Field Work
Sunlight-readable display and rugged protection for harsh outdoor environments.
Production Monitoring
Monitor equipment status, production data and factory workflows in real time.
Asset Management
Track assets, scan labels and improve accuracy across industrial operations.
The IR-80N is a Windows-based rugged tablet powered by an Intel N5100 processor. Windows 11 Home is listed as the standard operating system, with other Windows editions subject to configuration availability.
Yes. The device is rated IP65 for water and dust resistance, making it suitable for industrial environments.
Yes. Optional 1D and 2D barcode scanning modules are available for applications such as warehouse inventory management, asset identification and logistics data collection.
Yes. INNORUGGED offers OEM/ODM project support, including branding, configuration consultation and customization options subject to technical feasibility and project requirements.
The IR-80N is designed for warehouse management, logistics, manufacturing, asset management, field service, transportation and industrial inspection applications.
Yes. The IR-80N includes GPS functionality for location-based industrial applications. Supported positioning systems and performance depend on the final hardware configuration and operating environment.
Yes. Its IP65-rated enclosure and available high-brightness display options make it suitable for many outdoor working environments. An optional 700-nit HD display is available for applications requiring higher screen brightness.
Configure the IR-80N for Your Industrial Project
Choosing the right rugged tablet configuration depends on your software, working environment and data collection requirements.
Our team can help you evaluate Windows options, display brightness, wireless connectivity, barcode scanning, docking accessories and project quantities.
Share your application requirements with INNORUGGED to discuss suitable configurations for your deployment.
Related Products

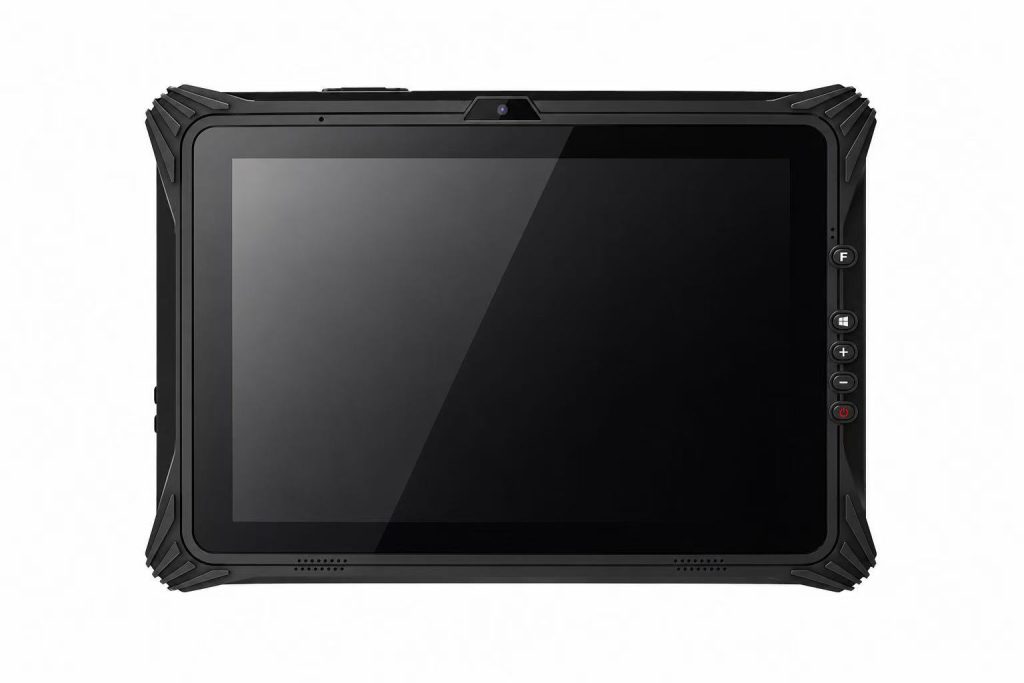

IR-80N Rugged Tablet
IR-11N Rugged Tablet
IR-20PRO Rugged Tablet

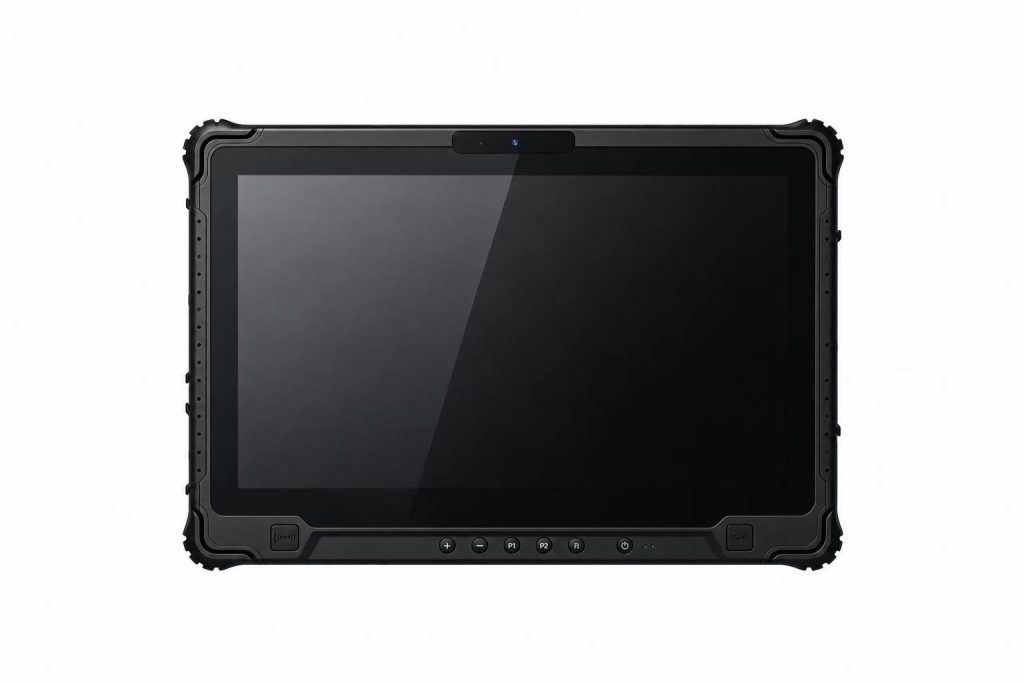

IR-14U Rugged Tablet
